chrome wall or ceiling light S14d – clear stick bulb

bobby.030.s

PLN 194.27

	bobby.030.s		base + LED 30cm	PLN 194.27
	bobby.050.s		base + LED 50cm	PLN 264.72

- +

shipped within 1-2 days

ZANGRA SAYS TECHNICAL DESCRIPTION ASSOCIATED PRODUCTS

Tubular lights

These tubular lamps by Belgian brand zangra are available in several colours and are particularly suited for mirror lighting.

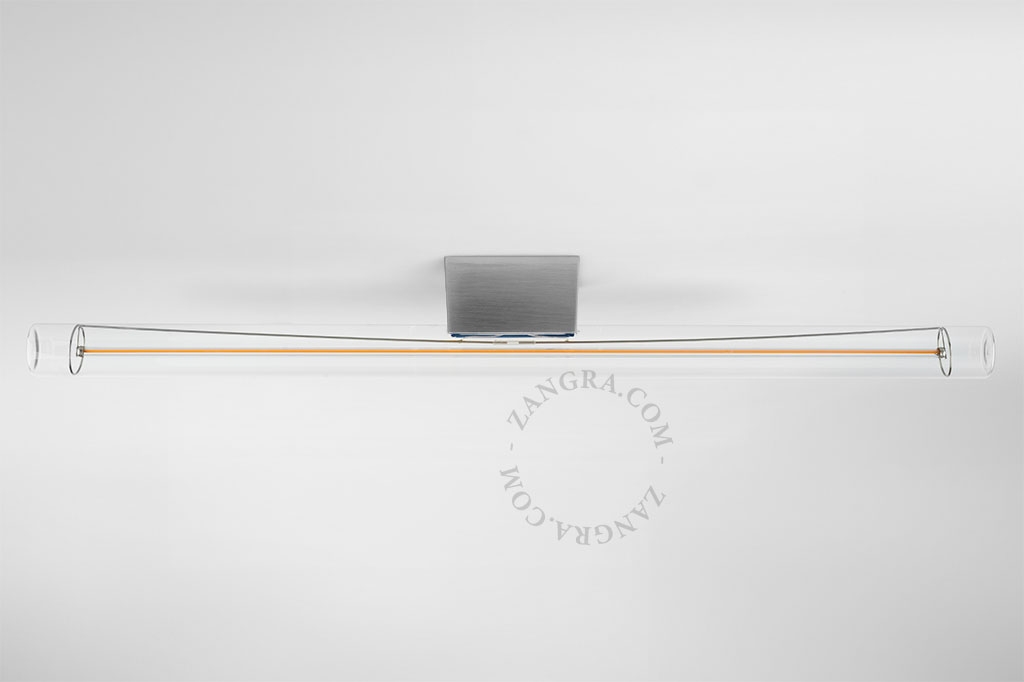

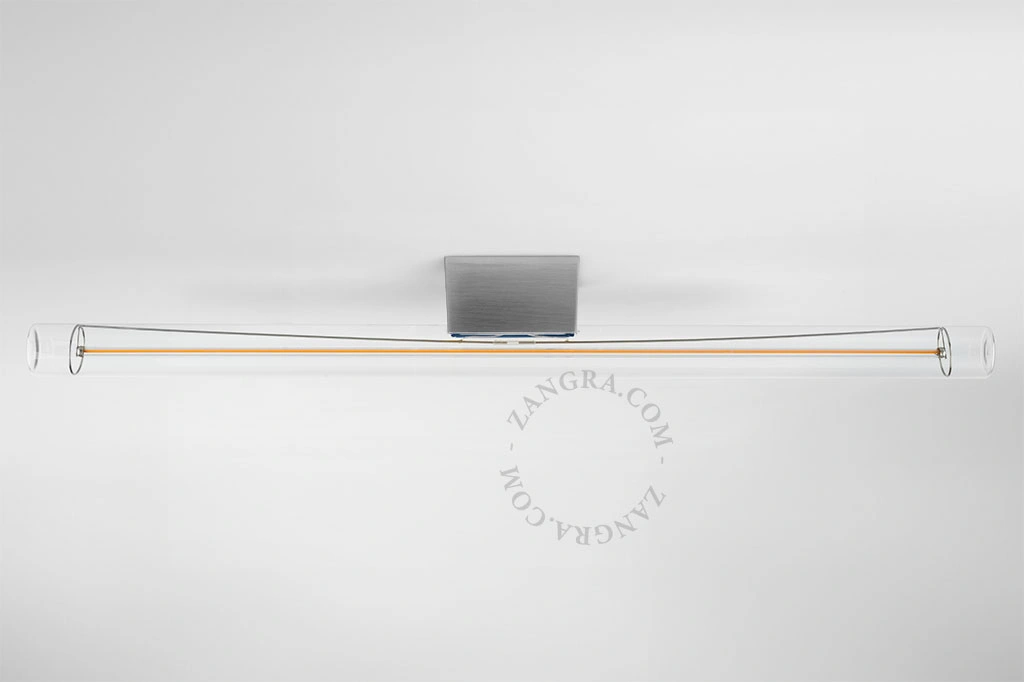

This rectangular surface-mounted light fixture is topped by a tubular light bulb with an S14d base.
zangra designed this model based on the historic Linestra linear lamp from the 1930s. Since then, new LED bulbs have replaced the former Linestra incandescent bulbs.
You can choose between a 30cm or 50cm light bulb.
Discover zangra's collection of tubular LED lamps here.

What is the difference between a S14s and S14d lamp holder for stick light bulbs?

The small rectangular lamp holders in which the tubular lamps are integrated are available in two different versions: the S14s model and the S14d model.
The 30 cm and 50 cm stick light bulbs offered by zangra have a single base (a pin). The 1-metre stick light bulbs have two bases (two pins).
For 30 cm and 50 cm stick light bulb, you need a single S14d lamp holder. 1-metre linear light bulb have two pins, so you need two S14s lamp holders.

The lamp holders are usually made of plastic or metal, zangra has designed a very aesthetic version in white and black porcelain.
See here the collection of zangra stick lamps with the corresponding lamp holders.

* S14d means that there is only one socket per tubular bulb. The phase (L) and the neutral (N) meet in the socket. Grounding is not necessary (Class 2).
* S14s means that there are two sockets per tubular bulb. The phase (L) is connected to one socket, the neutral (N) is connected to the other socket. Earthing is not necessary (Class 2).

What does the IP value mean on a light fitting?

All light fittings are classified according to their IP value. These IP values (International Protection or Ingress Protection) indicate the degree of protection of the light fitting against dust and moisture. The IP value consists of two digits: the first digit indicates the level of protection against dust; the second, the level of protection against moisture. The higher the IP value, the higher the protection. Check this diagram to see the different existing IP values.

What does the IP20 value mean on this light fitting?

IP20 means that the light fitting:
2: is protected against the intrusion of solid particles with a dimension greater than 12.5 millimetres.
0: has no protection against water penetration. This light fitting can be installed indoors, but not in wet areas.
It is not recommended to install this light fitting outdoors. A device with an IP20 value is not protected against dust or moisture. A light fitting marked IP20 may have holes to prevent overheating. However, the lamp is protected against contact with objects larger than 12.5 mm, such as a hand or finger.
This model is suitable for indoor use, but not outdoors.

SKU	bobby.s-
Material	Metal
Colour	Silver-coloured
Marking	CE
Lamp holder type	s14d
Lightbulb type	LED
Wattage	30 cm : 3.2W / 50 cm : 5W
Lumen	30 cm : 220 lumen / 50 cm : 345 lumen
Kelvin	30 cm : 2200 K / 50 cm : 2200 K
Voltage	AC 230 V
Frequency	~ 50 Hz
Protection marking	IP20
Safety class	Class 2
Dimmable	no
Colour temperature	warm white light
Life span	20 000 h
Number of circuits	20 000 on/off
Energy label	30 cm : G / 50 cm : G
Interaxial distance	5 cm
Dimensions wall or ceiling rose	4,7 x 7 x 4,1 cm
Fixation screws included	yes
Type of luminaire	Wall or ceiling light
Lightbulb included	Yes
Assembly instructions
Protection's indice
