white switch - two-way or simple nickel-plated toggle switch & push-button

switch.041.w.002.004

$113.39

	switch.041.w.002.004		pushbutton and toggle switch	$113.39
	switch.041.w.002.004.dim		pushbutton and toggle switch + universal regulator	$142.79

- +

shipped within 1-2 days

ZANGRA SAYS TECHNICAL DESCRIPTION ASSOCIATED PRODUCTS

Zangra’s collection of design switches
This two-way or simple toggle switch is part of zangra’s home accessories and will meet all your needs. These switches are entirely designed in Belgium by zangra and manufactured in Europe, which guarantees high quality and durability. The switch complies with the NF EN 61058-1 standard and is VDE certified.
* White lacquered wall plate.
* Nickel-plated brass toggle switch and push-button.
* Sold with rectangular junction box (70mm x 140mm).

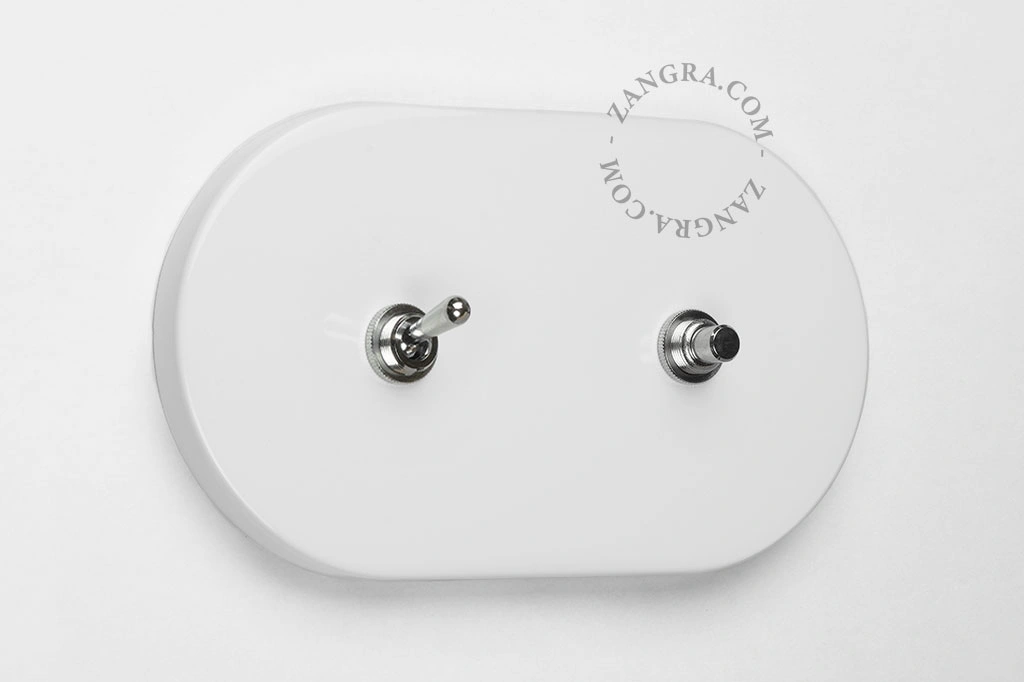

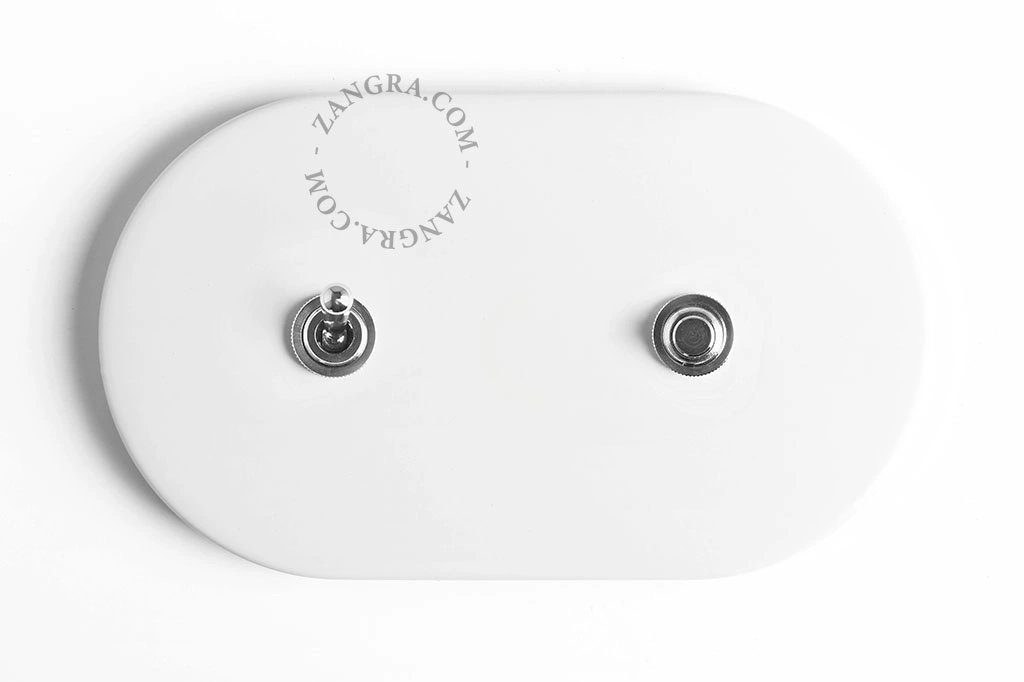

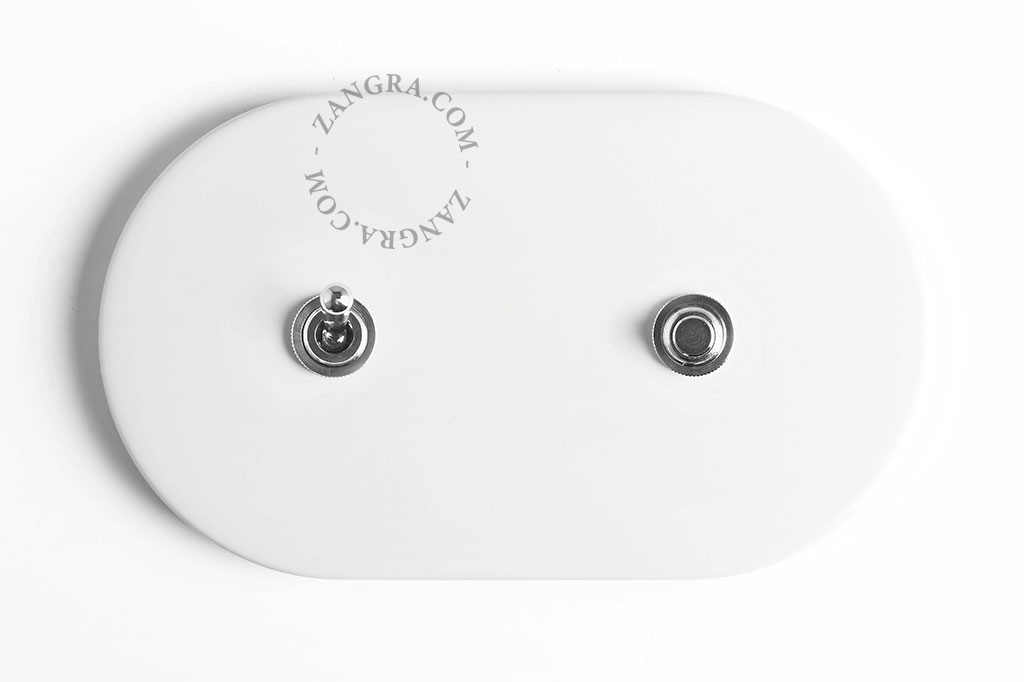

This switch is a combination of a toggle switch (A) and a push button (B)

A. The toggle switch can be installed on a two-way or simple circuit.

What is a two-way switch?

Two-way toggle switch, providing control of a light from two locations.
A two-way circuit is an electrical circuit that allows a lamp to be switched on or off from two switches, for example, a switch at each end of a corridor for the same lighting point.

What is a simple switch?

The simple switch, on the other hand, is used to switch a light on or off from a single location in the room (usually at the entrance to the room).

B. Push-button
A push-button is not a normal switch. The electric current is only transmitted when the button is pressed (for example a doorbell). But if a push-button is used in combination with an impulse relay in the fuse box, then it can be used as a one-way switch, a two-way switch, a timer or a stairwell switch. And if a push-button is used in combination with home automation then it can be used as a one-way switch, a two-way switch or a stairwell switch, a dimmer, a shutter switch, a doorbell button, a master switch, etc.

General characteristics push-button:

- Compatible with Ø 7 cm flush-mounted boxes.
- Compatible with stairwell impulse relays.
- Compatible with home automation.
- Compatible with a timer.

Material	Metal
Colour	Silver-coloured / White
Height	10 cm
Width	17 cm
Depth	1 cm
Origin	Europe
Designed by zangra in	2021
Marking	CE
Voltage	AC 250 V
Frequency	~ 50 Hz
Protection marking	IP20
Safety class	Class 1
Amperage	15 A / 4 A
