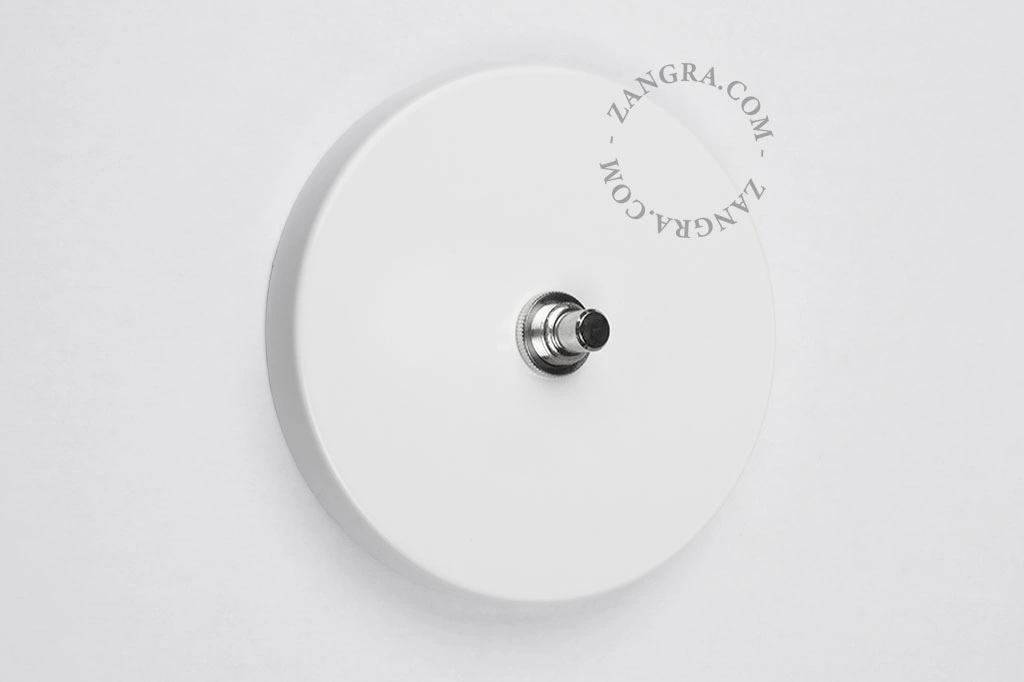

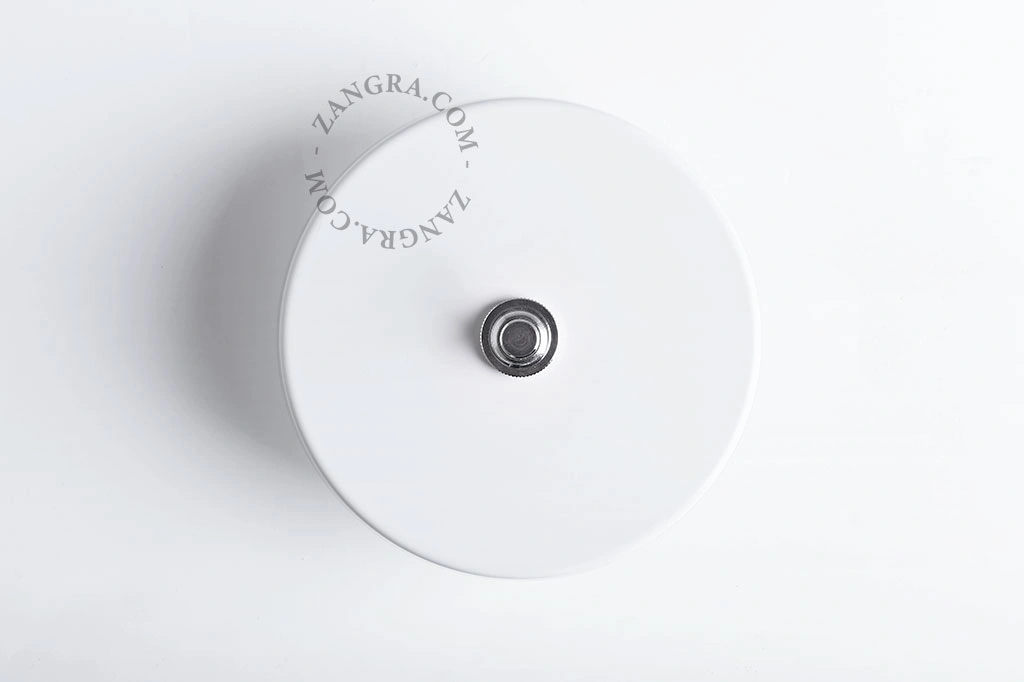

white switch - nickel-plated push-button

switch.040.w.004

$66.43

	switch.040.w.004		pushbutton	$66.43
	switch.040.w.004.dim		pushbutton + universal regulator	$98.59

- +

shipped within 1-2 days

ZANGRA SAYS TECHNICAL DESCRIPTION ASSOCIATED PRODUCTS

Zangra’s collection of design switches
This pushbutton switch is part of zangra’s home accessories and will meet all your needs. These switches are entirely designed in Belgium by zangra and manufactured in Europe, which guarantees high quality and durability. The switch complies with the NF EN 61058-1 standard and is VDE certified.
* White lacquered wall plate.
* Nickel-plated brass push-button.
* Sold with round junction box (Ø70mm x 60mm).

OPTION 1: push-button
A push-button is not a normal switch. The electric current is only transmitted when the button is pressed (for example a doorbell).
But if a push-button is used in combination with an impulse relay in the fuse box, then it can be used as a one-way switch, a two-way switch, a timer or a stairwell switch.
And if a push-button is used in combination with home automation then it can be used as a one-way switch, a two-way switch or a stairwell switch, a dimmer, a shutter switch, a doorbell button, a master switch, etc.

General characteristics push-button:

- Compatible with Ø 7 cm flush-mounted boxes.
- Compatible with stairwell impulse relays.
- Compatible with home automation.
- Compatible with a timer.

OPTION 2: push-button with universal regulator
A push-button with a universal regulator becomes a classic switch with dimmer.
This configuration allows you to switch off, switch on and dim a light bulb.
If you install two push-buttons, they will function as two-way switches.
There is no limit to the number of push-buttons that can operate a circuit.

General characteristics push-button with universal regulator:

- This push-button is sold with a built-in regulator, to be placed in a 7 cm Ø flush-mounted box.
- Load for incandescent or halogen bulbs: 4W-250W
- Load for dimmable LED bulbs: 4W-100W
- Light intensity memory. The light varies in intensity when the button is pressed and held for a long time.

Material	Metal
Colour	Silver-coloured / White
Depth	1 cm
Diameter	Ø 10 cm
Origin	Europe
Designed by zangra in	2021
Marking	CE
Voltage	AC 250 V
Frequency	~ 50 Hz
Protection marking	IP20
Safety class	Class 2
Amperage	4 A
Assembly instructions
Protection's indice
