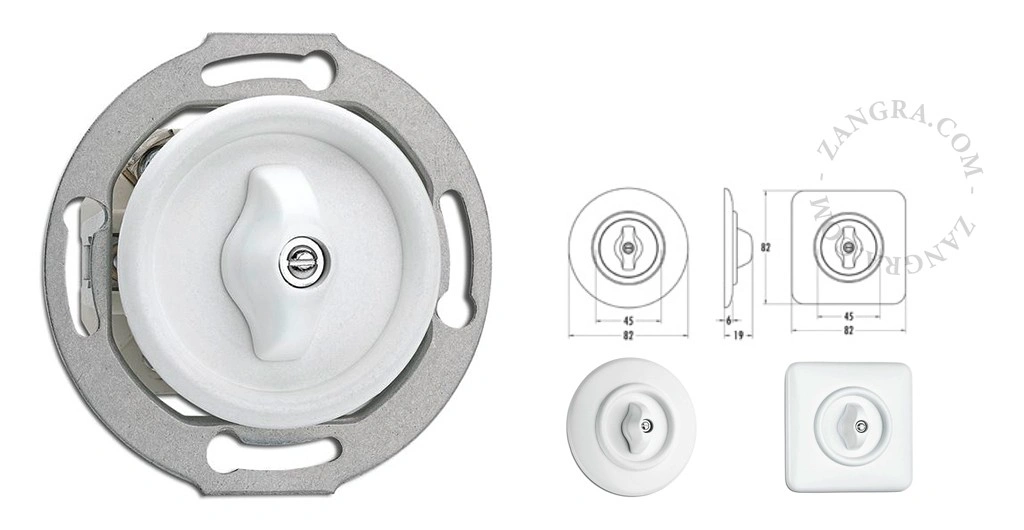

white bakelite over-centre rotary two-way switch
switch.007.007
$47.77
x
x
Technical Information
- 10A, 10 AX, AC 250V
- Rated power of the SBL (self-ballasted lamps) circuit up to 10A: max. 100W
- Duroplast central insert and locking bolt
- With jumping mechanism.
Compatible with flush-mounting box (Ø70mm x 60mm).
This switch can be installed on a two-way or simple circuit.
What is a two-way switch?
Two-way switch, providing control of a light from two locations.A two-way circuit is an electrical circuit that allows a lamp to be switched on or off from two switches, for example, a switch at each end of a corridor for the same lighting point.
What is a simple switch?
The simple switch, on the other hand, is used to switch a light on or off from a single location in the room (usually at the entrance to the room).| Code | switch.007.007 |
| EAN code | 4051094868867 |
| Material | Bakelite / Duroplast |
| Colour | White |
| Diameter | Ø 8,2 cm |
| Origin | Europe |
| Marking | CE / VDE |
| Voltage | 10 AX - AC 250V |
| Protection marking | IP20 |
| Amperage | 10 A |
