copper S14d lamp holder for stick bulb

Name: copper S14d lamp holder for stick bulb copper S14d lamp holder for stick bulb
Availability: InStock

light.073.s14d.co

€14.73

ZANGRA SAYS TECHNICAL DESCRIPTION ASSOCIATED PRODUCTS

S14d copper metal holder.

What is the difference between a S14s and S14d lamp holder for stick light bulbs?

The small rectangular lamp holders in which the tubular lamps are integrated are available in two different versions: the S14s model and the S14d model.
The 30 cm and 50 cm stick light bulbs offered by zangra have a single base (a pin). The 1-metre stick light bulbs have two bases (two pins).
For 30 cm and 50 cm stick light bulb, you need a single S14d lamp holder. 1-metre linear light bulb have two pins, so you need two S14s lamp holders.

The lamp holders are usually made of plastic or metal, zangra has designed a very aesthetic version in white and black porcelain.
See here the collection of zangra stick lamps with the corresponding lamp holders.

* S14d means that there is only one socket per tubular bulb. The phase (L) and the neutral (N) meet in the socket. Grounding is not necessary (Class 2).
* S14s means that there are two sockets per tubular bulb. The phase (L) is connected to one socket, the neutral (N) is connected to the other socket. Earthing is not necessary (Class 2).

What does the IP value mean on a light fitting?

All light fittings are classified according to their IP value. These IP values (International Protection or Ingress Protection) indicate the degree of protection of the light fitting against dust and moisture. The IP value consists of two digits: the first digit indicates the level of protection against dust; the second, the level of protection against moisture. The higher the IP value, the higher the protection. Check this diagram to see the different existing IP values.

What does the IP20 value mean on this light fitting?

IP20 means that the light fitting:
2: is protected against the intrusion of solid particles with a dimension greater than 12.5 millimetres.
0: has no protection against water penetration. This light fitting can be installed indoors, but not in wet areas.
It is not recommended to install this light fitting outdoors. A device with an IP20 value is not protected against dust or moisture. A light fitting marked IP20 may have holes to prevent overheating. However, the lamp is protected against contact with objects larger than 12.5 mm, such as a hand or finger.
This model is suitable for indoor use, but not outdoors.

Is the light bulb included?

The light bulb is not included when you buy this light. You will find here the whole selection of LED, incandescent, stick and halogen light bulbs. Take into account that each light needs a specific type of light bulb. You will find the kind of light bulb that it requires under the "Technical Description" tab.

SKU	light.073.s14d.co
EAN code	5415249019631
Material	Metal

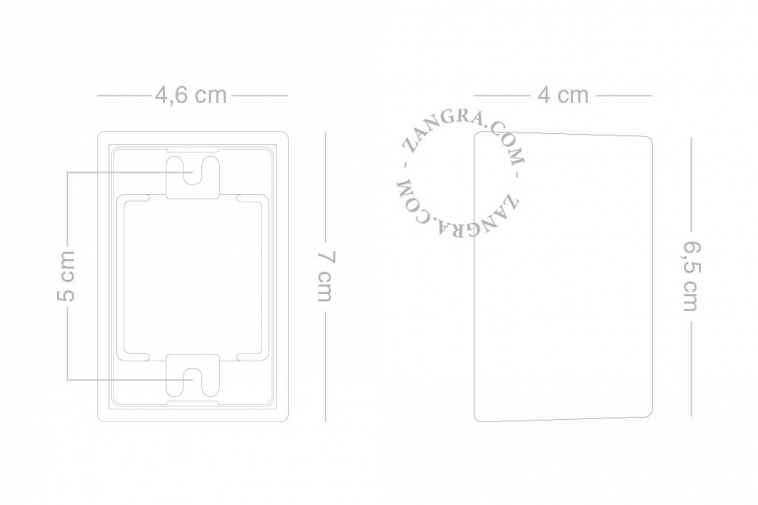

Height	4 cm
Width	7 cm
Depth	4,5 cm
Marking	CE
Lamp holder type	s14d
Wattage	max 60 W
Voltage	AC 230 V
Frequency	~ 50/60 Hz
Protection marking	IP20
Safety class	Class 2
Interaxial distance	5 cm
Fixation screws included	yes
Type of luminaire	Wall or ceiling lamp
Assembly instructions
Protection's indice
