copper-coloured wall or ceiling light S14d – opal stick bulb – 30cm or 50cm
light.073.02.030.co
€12.20
x
x

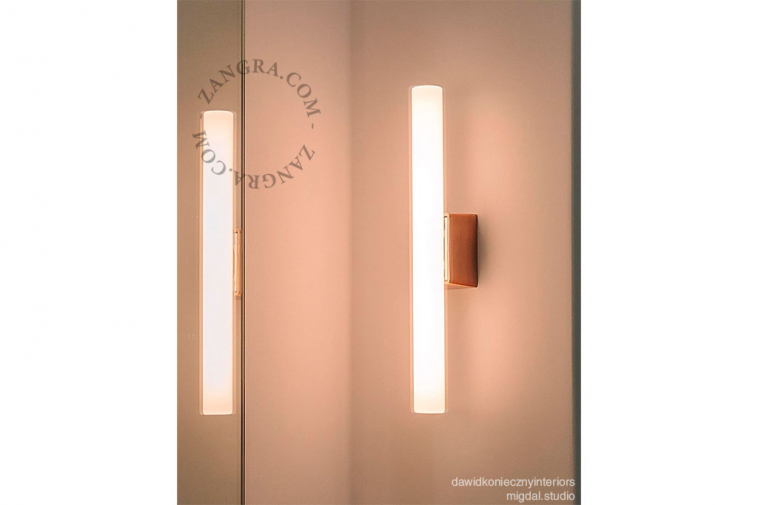

The main attraction of this eye-catching lamp is the 30 or 50-cm-long 'stick' bulb. The design of this lamp could not be more minimalistic: a plain fitting with a bulb. The tube-shaped bulb provides a mild warm glow, which is why it is often used as a mirror lamp.
Opal glass stick lamp with s14d copper metal holder.
What is the difference between a S14s and S14d lamp holder for stick light bulbs?
The small rectangular lamp holders in which the tubular lamps are integrated are available in two different versions: the S14s model and the S14d model.The 30 cm and 50 cm stick light bulbs offered by zangra have a single base (a pin). The 1-metre stick light bulbs have two bases (two pins).
For 30 cm and 50 cm stick light bulb, you need a single S14d lamp holder. 1-metre linear light bulb have two pins, so you need two S14s lamp holders.
The lamp holders are usually made of plastic or metal, zangra has designed a very aesthetic version in white and black porcelain.
See here the collection of zangra stick lamps with the corresponding lamp holders.
* S14d means that there is only one socket per tubular bulb. The phase (L) and the neutral (N) meet in the socket. Grounding is not necessary (Class 2).
* S14s means that there are two sockets per tubular bulb. The phase (L) is connected to one socket, the neutral (N) is connected to the other socket. Earthing is not necessary (Class 2).
What does the IP value mean on a light fitting?
All light fittings are classified according to their IP value. These IP values (International Protection or Ingress Protection) indicate the degree of protection of the light fitting against dust and moisture. The IP value consists of two digits: the first digit indicates the level of protection against dust; the second, the level of protection against moisture. The higher the IP value, the higher the protection. Check this diagram to see the different existing IP values.What does the IP20 value mean on this light fitting?
IP20 means that the light fitting:2: is protected against the intrusion of solid particles with a dimension greater than 12.5 millimetres.
0: has no protection against water penetration. This light fitting can be installed indoors, but not in wet areas.
It is not recommended to install this light fitting outdoors. A device with an IP20 value is not protected against dust or moisture. A light fitting marked IP20 may have holes to prevent overheating. However, the lamp is protected against contact with objects larger than 12.5 mm, such as a hand or finger.
This model is suitable for indoor use, but not outdoors.
| Total length | 30 cm - 50 cm |
| Diameter | Ø 3cm |
| Marking | CE |
| Lamp holder type | s14d |
| Light bulb type | LED |
| Wattage | 30 cm: 3,5W - 50 cm: 4,8W |
| Lumen | 30 cm: 260 lumen - 50 cm: 470 lumen |
| Kelvin | 2700 K |
| Voltage | AC 230 V |
| Frequency | ~ 50/60 Hz |
| Protection marking | IP20 |
| Safety class | Class 2 |
| Dimmable | no |
| Life span | 15000 h |
| Number of circuits | 100000 on/off |
| Dimensions wall or ceiling rose | 7 cm x 4 cm x 4,5 cm |
| Fixation screws included | yes |
| Type of luminaire | Wall or ceiling lamp |
| Assembly instructions | |
| Protection's indice | |
